TransCube(s)
The TransCube Global is a transportable, environmentally friendly double-walled fuel storage tank, that offers an efficient solution for on-site fueling and auxiliary supply. With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously, the TransCube will save you time and double or triple the run times of your equipment.
Features:
- Lockable Equipment Cabinet - Equipment and ports are secure and spills are contained. Secure hose access enables fueling while cabinet is locked
- Corner Brackets - Liftable by crane & easily stackable: two high full and three high empty
- Double Walled 110% Containment - Built-in, weatherproof secondary containment eliminated the need for pans or basins
- Internal Baffles - Designed to maximize stability when handling the tank full of fuel
- Galvanized Frame - Strong, durable, and secure structure with added protection from bumps and scratches
- Removable Inner Tank - For routine cleaning, maintenance, and inspection
- Four Way Forklift Pockets - Quick and easy maneuvering and mobility
- Tank Comes with one feed & return block
Ideal Uses & Applications:
- Onsite Fuel Supply - Easily refuel machinery on site when needed and cut back on fuel delivery waiting times
- Fuel Transport - Meeting multiple worldwide transport regulators, the TransCube can transport fuel safely anywhere you need it
- Generator and Auxiliary Equipment - TransCube fuel tanks have the ability to quickly and efficiently connect to three diesel powered pieces of equipment and refuel equipment via pump at the same time
Approvals:
- 10/20/30/40/50TCG
- UL142, CAN/ULC-S601, US DOT, UN-IBC, TRANSPORT CANADA, NFPA30
- 100TCG
- UL142, CAN/ULC-S601, NFPA30
Product Sales Sheet(s):
Size(s) - Dimensions L x W x H / Weight (Empty / Full)

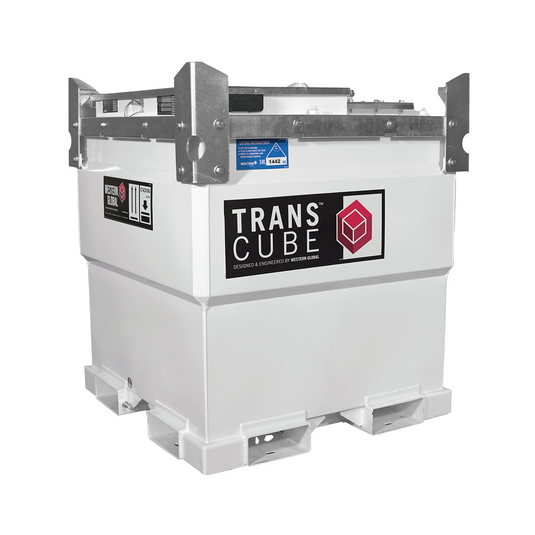

- 10TCG(G)W-NA - 251g (45" x 45" x 52") - 1,190 lbs / 3,178 lbs

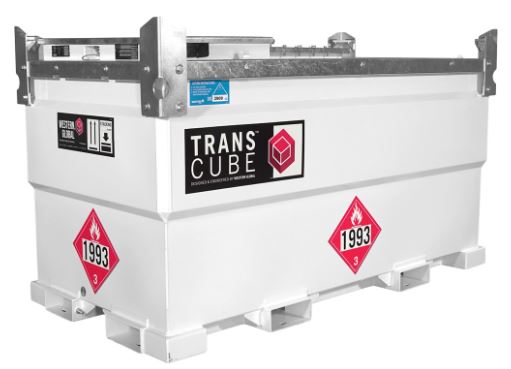

- 20TCG(G)W-NA - 552g (90" x 45" x 52") - 1,814 lbs / 6,194 lbs

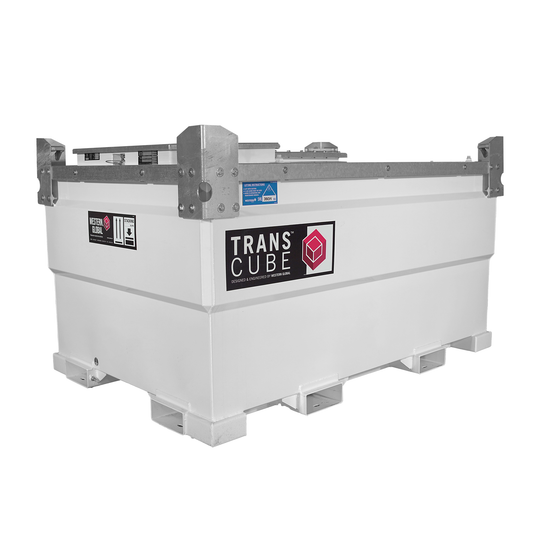

- 30TCG(G)W-NA - 787g (90" x 61" x 52") - 2,425 lbs / 8,666 lbs
- 40TCG(G)W-NA - 999g (91" x 91" x 45") - 3,483 lbs / 11,411 lbs

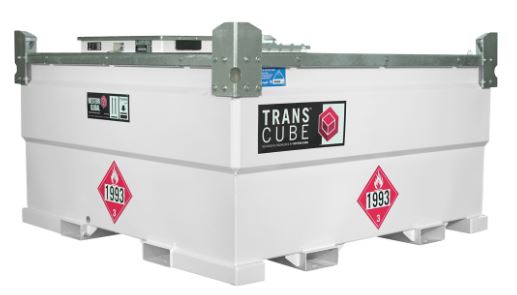

- 50TCG(G)W-NA - 1,204g (91" x 91" x 52") - 3,703 lbs / 14,550 lbs
-

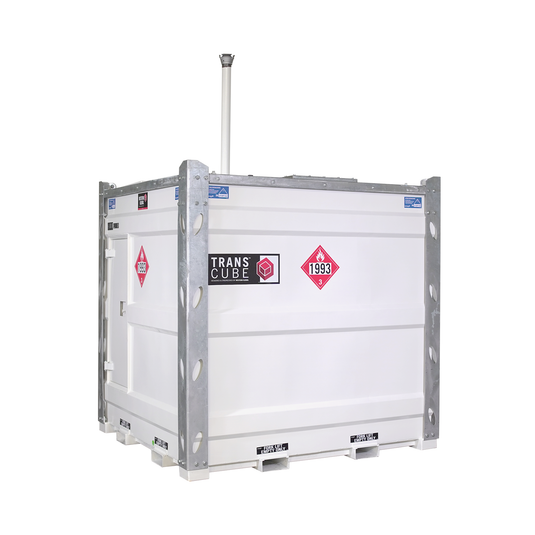

100TCG - 2,388g (99" x 90" x 99") - 7,553 / 26,486 lbs
