The GPRO V20-115 series is the next-generation modular vane pump for stationary applications fueling large equipment. The V20 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 115V AC motor delivers up to 20 GPM (76 L/min). It’s fast and flexible; able to load up to 600 gallons of fuel uninterrupted, with a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Extreme Temperature (XT) models available. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical, and it must be a quick and dependable process.

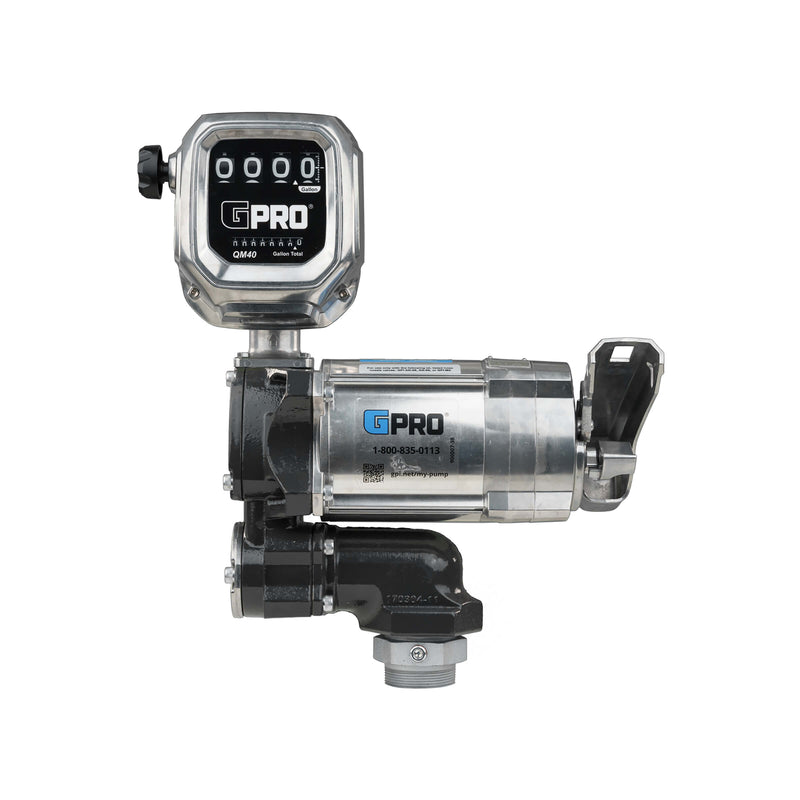

The GPRO QM40 Mechanical Fuel Meter provides precision fuel measurements for more accurate readings for fleet operations, heavy equipment, and agricultural applications. It features a magnetic drive mechanism that is nearly frictionless; less friction results in more flow. The QM40 easily attaches to the new modular fuel transfer pumps with the Quick-Fit Modular feature, simple four-bolt connections.
For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
Pump, motor, and meter are UL Listed. For use with gasoline (alcohol blends to E15), diesel fuel (biodiesel blends to B20), and kerosene. HOSE AND NOZZLE NOT INCLUDED.
*Formerly the PRO20-115PO/QM40G8N 503000-70.

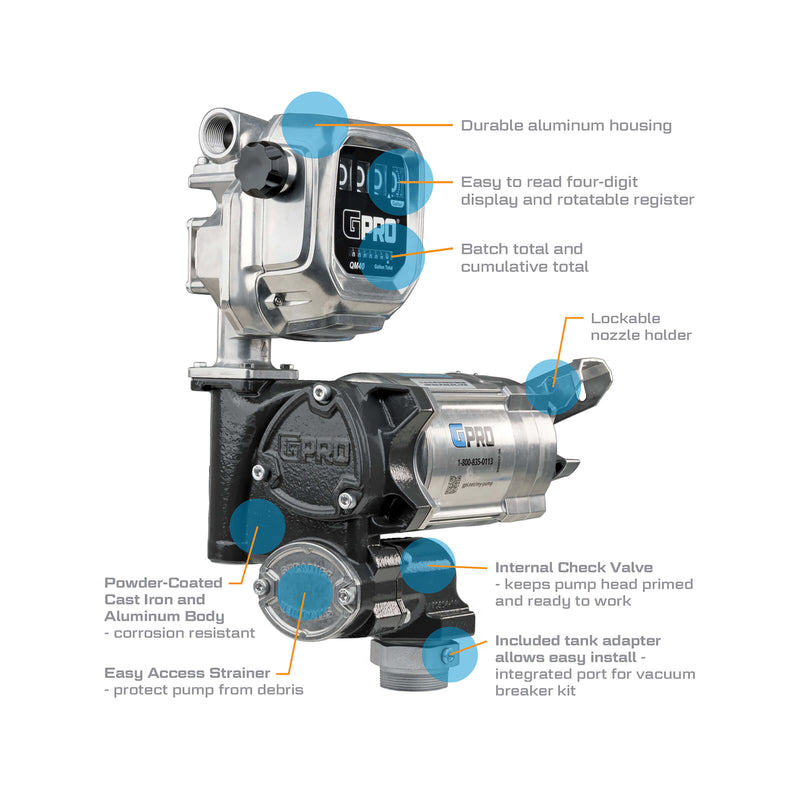

FEATURES & BENEFITS

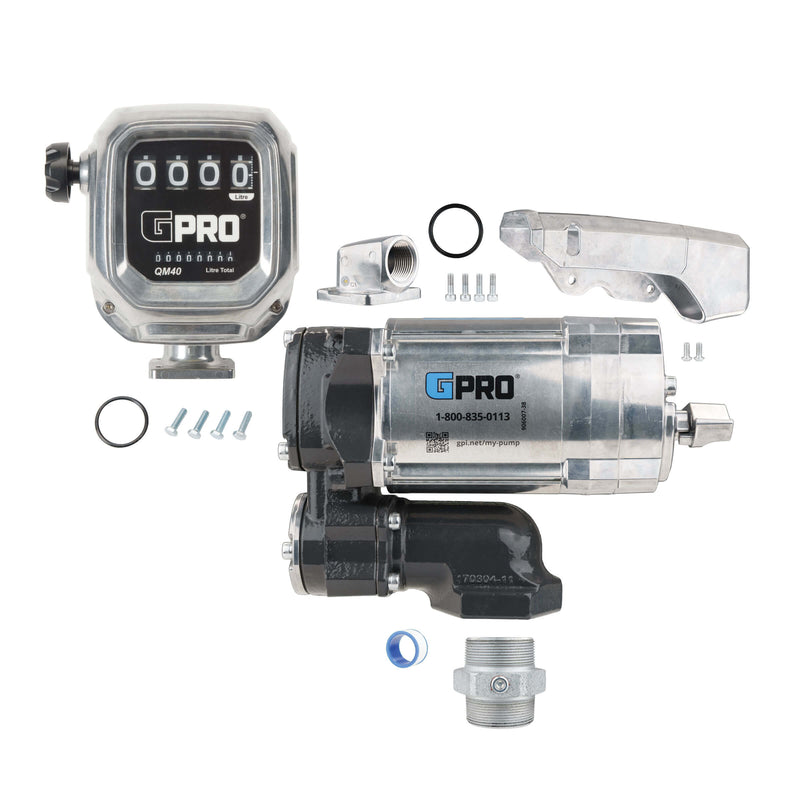

- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
- High Pressure Performance ideal with hose reel
- 1-inch outlet for fueling large diesel equipment
- Multidirectional 90 degree outlet to adapt easily for your application
- QM40 Meter - Extreme Accuracy, within +/- 1/2% across a flow range from 2 to 40 GPM
- QM40 Meter has Magnetic Drive eliminates drive shaft leaks
- QM40 Meter Register rotates to easily read register in any application
- QM40 Meter - Optional pulser accessory is compatible with most fuel management systems
5 Year Pump / 5 Year Meter Manufacturer Warranty
GPI V20-115V Manual
