Stackable Tank(s)

Stackable Tank(s)

Product ID: RTT-1010 Category: Stackable Tanks Vendor: CHS Vendor Direct

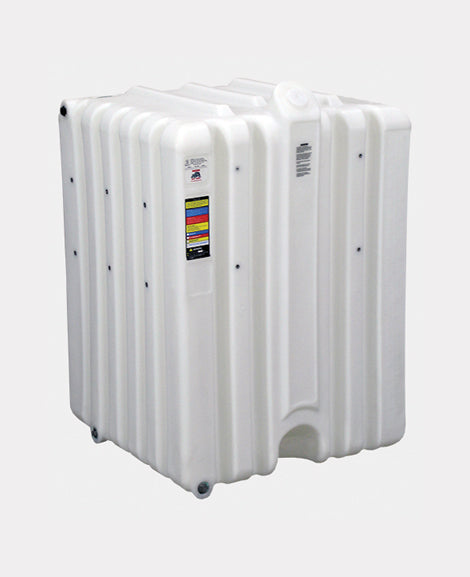

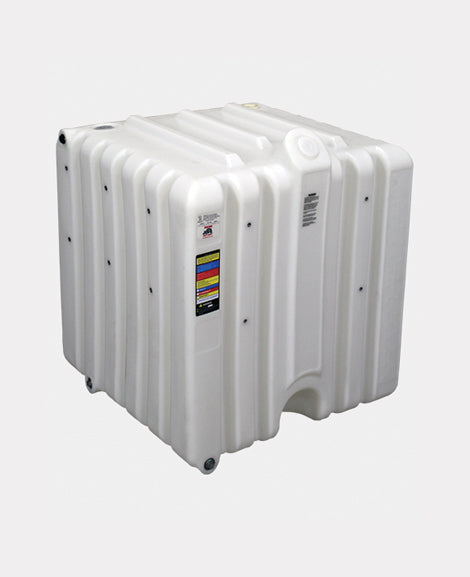

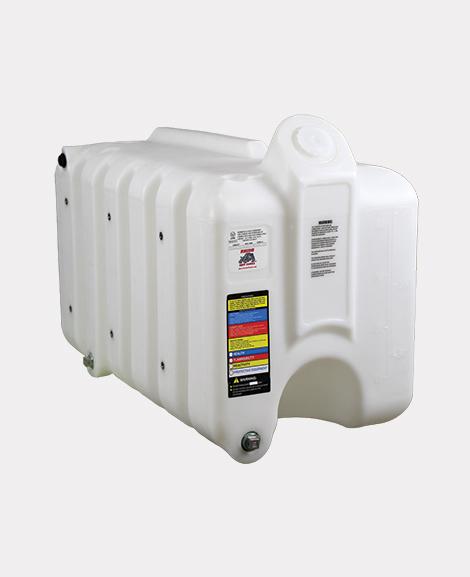

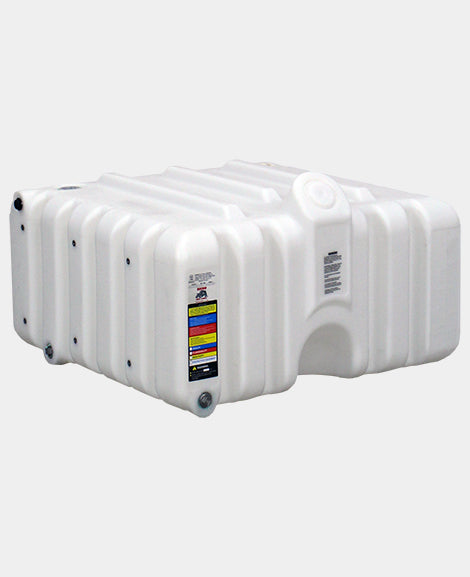

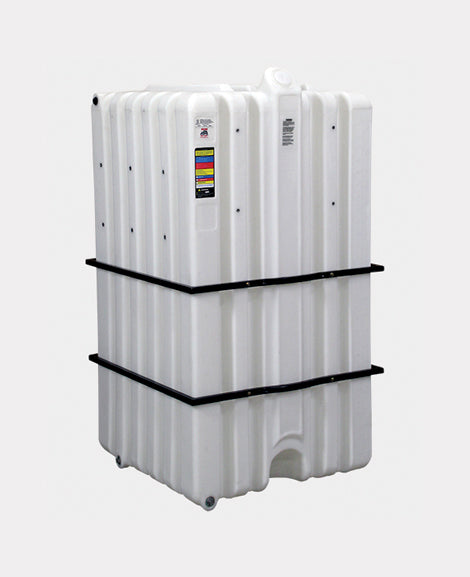

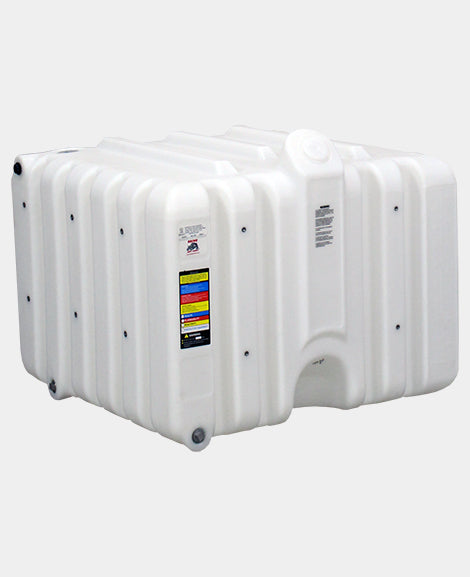

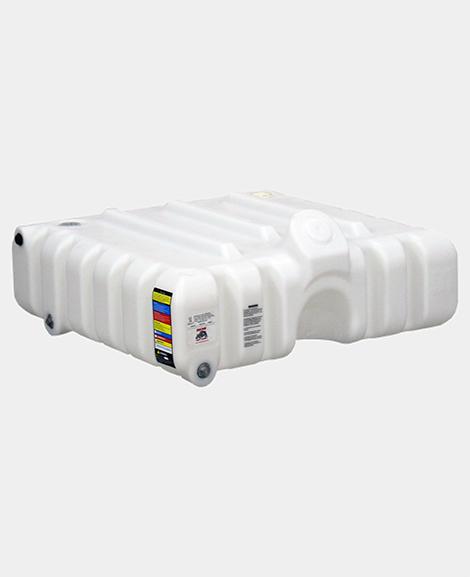

Rhino Tuff Tanks space saving design allows individual tank sizes to be stacked in any combination and eliminates the hassles of handling 55g drums. Stackable tanks are designed with a 36" x 36" footprint that allows them to be interchangeable stacked together. All tanks are constructed with High Density Polyethylene (HDPE) for optimum surface clarity, UV Stabilization, and superior environmental stress crack resistance (ESCR). Rhino Tuff Tanks provide a clean, stable, contamination-free contained that will not rust or corrode - protecting your fluids from the environment. Combine with a variety of accessory options to create your own unique fluid storage and dispensing system. RTT Systems have been certified as compliant with ULC 142.14-03 testing standards.

Molded-in Tank Inserts:

  • Left Side – Six (6) inserts: 5/16″ – 18
    • Not included on RTT-1010 (45g Flat tank)

Tank Openings:

  • Top: 2 Inch NPT and 2 Inch Buttress Thread
  • Front Fill Port: 2 Inch NPT
  • Front Drain Port: 1 Inch NPT, 304 Stainless Steel
  • Side Top: 1 Inch NPT
  • Side Drain Port: 1 Inch NPT, 304 Stainless Steel

Size(s):

  • RTT-1010 - 45g Tank
  • RTT-1110 - 80g Tank
  • RTT-1210 - 120g Tank
  • RTT-1310 - 180g Tank
  • RTT-1410 - 225g Tank
  • RTT-1510 - 310g Tank
  • RTT-1111 - 45g Narrow Tank

Dimensions - (L x W x H) / Height Including Fill Port

  • 45g Tank - 36" L x 36" W x 10 H / 14" H
  • 80g Tank - 36" L x 36" W x 18 H / 22" H
  • 120g Tank - 36" L x 36" W x 27" H / 31" H
  • 180g Tank - 36" L x 36" W x 39" H / 43" H
  • 225g Tank - 36" L x 36" W x 49" H / 53" H
  • 310g Tank - 36" L x 36" W x 66" H / 70" H
  • 45g Narrow Tank - 18" L x 36" W x 20" H / 24" H
