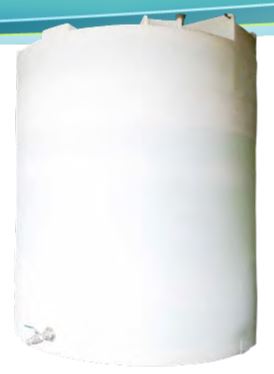

Bulk DEF Tanks - Snyder

CHS Business Partners you must be logged in to MyCHS to see prices and purchase items. For all others please contact your local CHS for assistance. Login now

This is a pre order item. We will ship it when it comes in stock.

Features:

  • Indoor Use - Commercial D Tanks are single wall vertical tanks are rotationally molded with no seam and are constructed to store DEF with a specific gravity of 1.35 providing maximum strength and durability for long-term trouble-free use.
  • Large Capacities - A variety of tank dimensions are available for filling drums, totes, or transports (see Snyder sizing below)
  • Bottom Fill & Withdrawal - Supplied with Stainless Steel bottom tank outlets & lockable valves to improve the tank's structural integrity and provide the best long-term solution
  • Tank Warranty - 3-year material & workmanship

Tank Specifications:

  • HDLPE Polyethylene Single Wall Flat-Bottom
  • Built to Commercial Specification for DEF
  • Long-term UV-15 Stabilizer
  • Natural Color White
  • FOB - Lincoln, NE

    Plumbing Specifications:

    • 3" FNTP Stainless Steel Tank Outlet with Siphon Tube
    • Tank Outlet Package with 2" Stainless Steel Full Port Lockable Valve
    • 3" Tank 10-Micron Breather Vent
    • 18" Non-Vented Manway to Protect Product Integrity
    • 2x additional 2" Openings on Top of Tank

      Construction Specifications:

      • Tank Wrap for Shipping (Snyder Tanks Only)
      • On-Site Assembly Required. Instructions Included with shipment.

      Snyder Tank Sizes - Dimensions (Diameter x Height / Tip to Vert Clearance)

      ***Dimensions may vary +/- 3% due to standard rotational molding tolerances

      • KBS S3000SWD - 3,000g (102" x 96" / 140")
      • KBS S3000SWD90 - 3,000g (90" x 127" / 156")
      • KBS S6000SWD - 6,000g (120" x 132" / 179")
      • KBS S6000SWD10 - 6,000g (102" x 188" / 214")
      • KBS S6900SWD - 6,900g (120" x 153" / 195")
      • KBS S7650SWD - 7,650g (142" x 122" / 190")
      • KBS S8150SWD - 8,150g (120" x 177" / 215")
      • KBS S8900SWD - 8,900g (120" x 194" / 229")
      • KBS S9800SWD - 9,800g (120" x 215" / 248")
      • KBS S10500SWD - 10,500g (142" x 169" / 222")
      • KBS S12500SWD - 12,500g (142" x 198" / 244")
      • KBS S15000SWD - 15,000g (142" x 234" / 274")

      Miscellaneous Parts

      • SBD 910381 - Parker 2" Male Stainless Steel Drybreak
      • Tank Decals - Different for each tank. Indicates capacity in 100g & 500g Increments

      Receiving-Inspecting-Unloading Bulk Tank

      CHS Vendor Direct Item - Lead times may vary
